Steel Shelf Panel Storage Panel Roll Forming Machine Heavy-Duty Shelves
Modern storage shelving(storage system roll forming machine)is one of the essential storage equipment in today's corporate warehouses, it is also ubiquitous in our daily life and work, such as supermarkets, clothing shops, electronics factories, and other special types of factories inside, are indispensable. In general, storage shelves are commonly used in light and medium-sized shelves, heavy-duty shelves and loft shelves. There are many shelves that use steel laminates(shelf panel roll forming machine)and some that use wooden laminates.
Roll forming machine flow chart:
Hydraulic decoiler with leveler--Servo feeder--Hydraulic punth--Hydraulic cut--Platform--Roll forming machine--Platform--Bending stand--Platform--Bending stand--Out table
LINBAY MACHINERY's shelf board forming machines are typically capable of producing a wide range of sizes, with adjustable widths and heights.
This solution is suitable for multi height double folding, which is much more difficult than single folding. Normally speaking if you want to complete two folds in a cut, then you need one width and one mould, this is a solution that can also take advantage of the flexibility of the forming machine to allow one mould to be folded twice to obtain the same profile and also save on the cost of the machine.
| Steel Shelf Panel Storage Panel Roll Forming Machine Heavy-Duty Shelves |
| Machinable thickness | 0.8mm | Steel type | Galvanized steel |
| Hydraulic decoiler | 5 Tons | Leveler | 3kw |
| Hydraulic punch | 11kw | Servo motor | 3kw |
| Hydraulic cut | 11kw | Platform | 2.2kw |
| Forming stands | 18 stands | Structure | Cantilever |
| Forming motor | 11kw | Height change motor | 2*0.75kw |
| Width change motor | 1.5kw | Roller material | GCr15 |
| Control panel | SIMENS PLC | Hydraulic station | 11kw |
| Voltage | 380V 50Hz 3Ph | Machine color | Industrial blue |

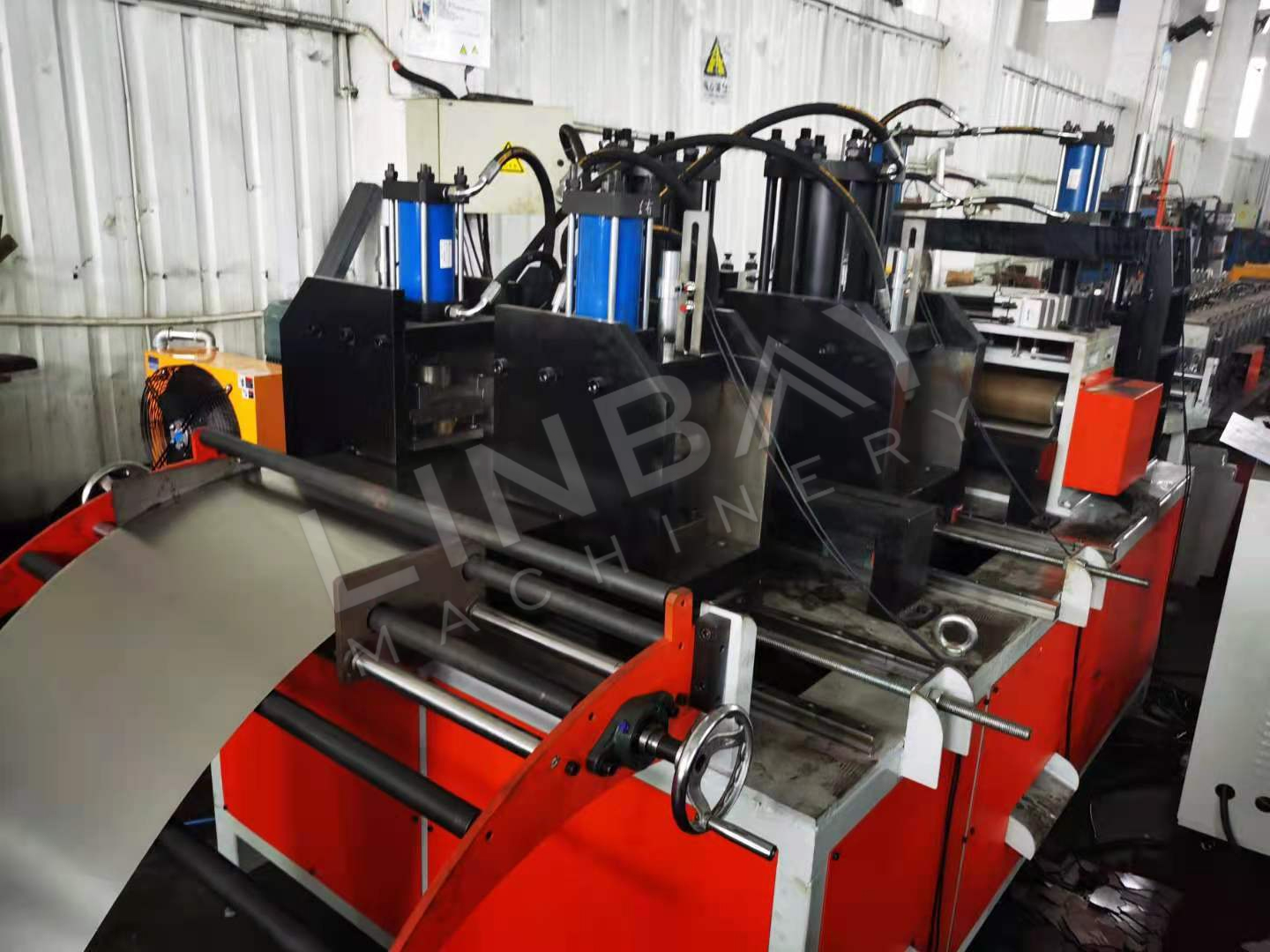

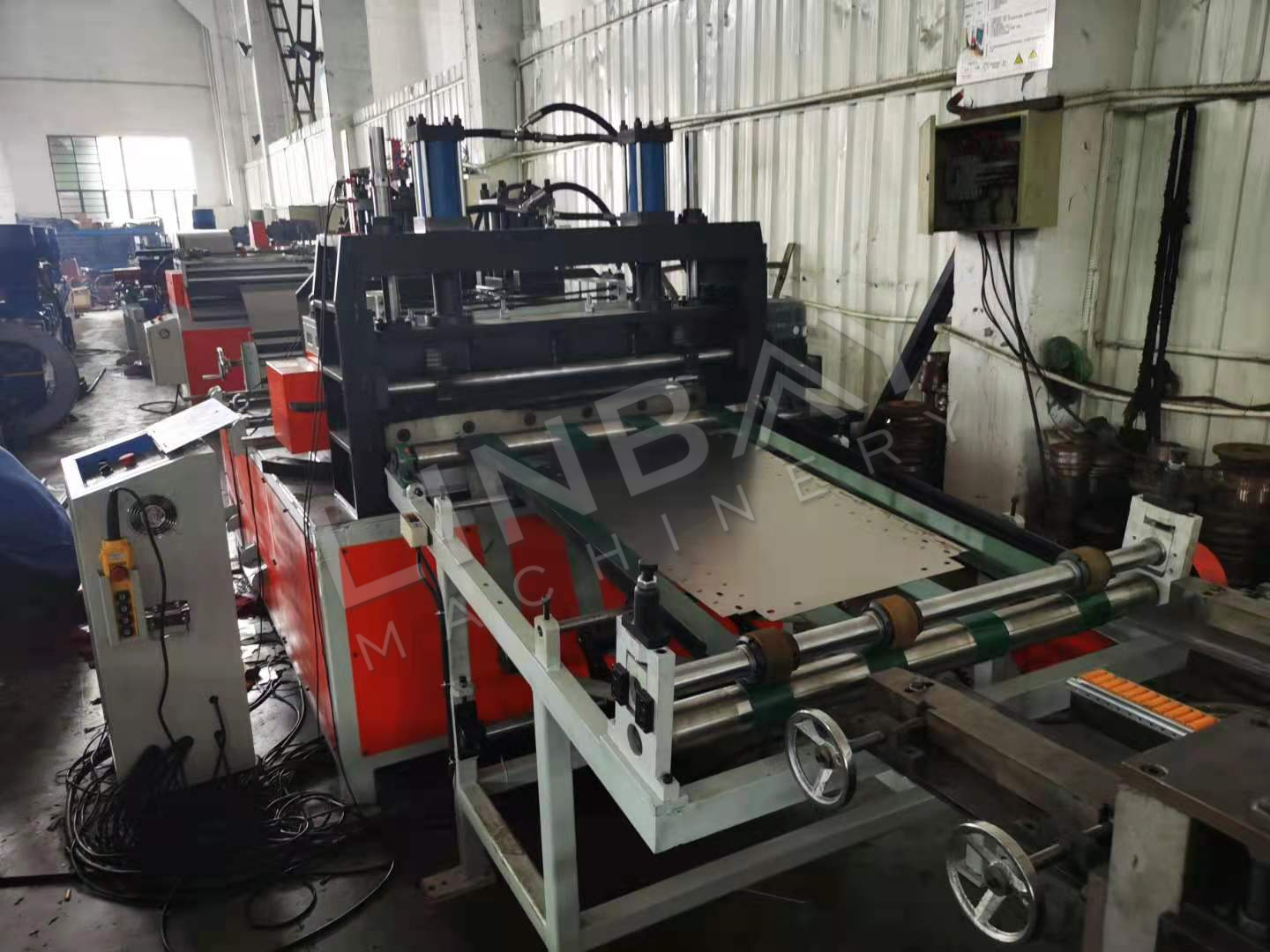

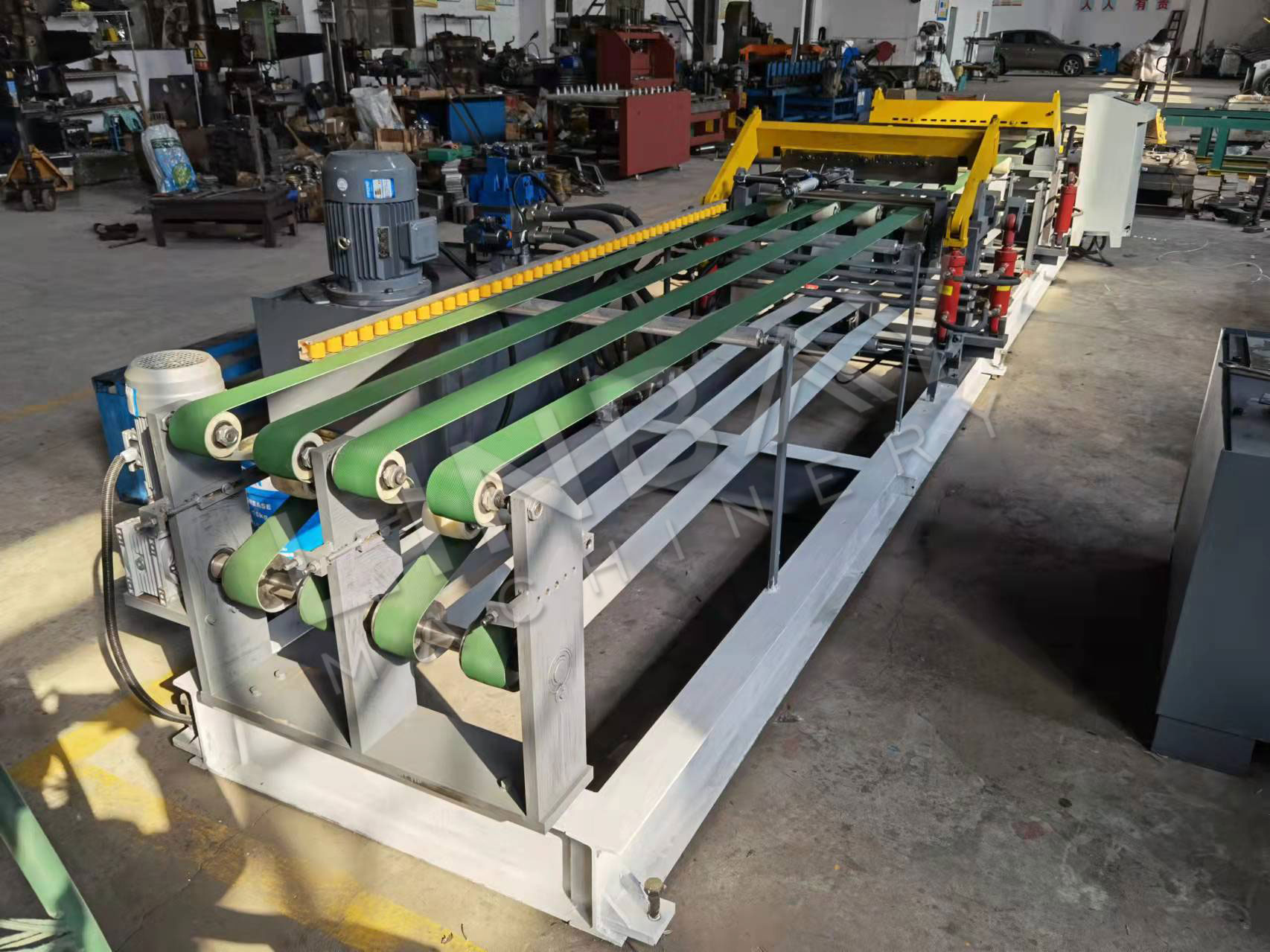

Pictures of components:
